FAL 125

FAL 125 Solar Panel

Power (Pm) in Watts (Nominal)	125Wp
Open Circuit Voltage (Voc) in Volts	22.86
Short Circuit Current (Isc) in Amps	6.72
Voltage at Maximum Power (Vmp) in Volts	19.45
Current at Maximum Power (Imp) in Amps	6.43
Maximum System Voltage	1000V
Solar Cells per Module (Units)	36
Length x Width x Thickness (LxWxT) mm	1145 x 665 x 30
Weight - Kg	7KG
Mounting Holes Pitch (Y) - mm	630MM
Mounting Holes Pitch (X) - mm	500MM
Area - Sq. M	0.671
Junction Box	3 RAIL 10Amp

I-V Curve at STC FAL 125

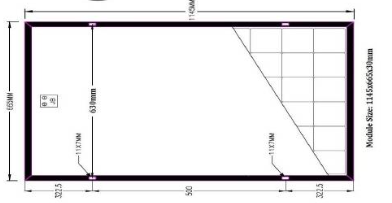

Diagram FAL 125

05 years Product Warranty, 12 years – 90% of Power, 25 Years – 80% of power

Due to constant product modifications, FAL reserves the right to amend the above specifications without prior notice.
