Product Details

Wide Range of Solar Panels

FAL 40

FAL 40 Solar Panel

FAL 40
Power (Pm) in Watts (Nominal) 40Wp
Open Circuit Voltage (Voc) in Volts 23.08
Short Circuit Current (Isc) in Amps 2.25
Voltage at Maximum Power (Vmp) in Volts 18.46
Current at Maximum Power (Imp) in Amps 2.17
Maximum System Voltage 1000V
Solar Cells per Module (Units) 36
Length x Width x Thickness (LxWxT) mm 431 x 665 x 30/35
Weight - Kg 3.00
Mounting Holes Pitch (Y) - mm 630
Mounting Holes Pitch (X) - mm 210
Area - Sq. M 0.286
Junction Box 2 RAIL 6Amp

I-V Curve at STC FAL 40

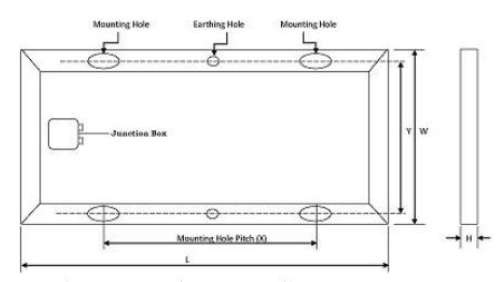

Diagram FAL 40

Warranty
05 years Product Warranty, 12 years – 90% of Power, 25 Years – 80% of power

Construction Features
Type of Cell Poly-Crystalline
Glass Tempered & Low Iron
Encapsulate Ethylene Vinyl Acetate
Frame Anodized Aluminum
Junction Box Weather Proof IP67
Temp. Coefficient
Voltage -0.35%/ °C
Current 0.10% / °C
Power -0.47% / °C
NOCT 47+/-2 °C

Due to constant product modifications, FAL reserves the right to amend the above specifications without prior notice.
