Product Details

Wide Range of Solar Panels

FAL 165

FAL 165 Solar Panel

Power (Pm) in Watts (Nominal)	165Wp
Open Circuit Voltage (Voc) in Volts	23.58
Short Circuit Current (Isc) in Amps	8.60
Voltage at Maximum Power (Vmp) in Volts	20.04
Current at Maximum Power (Imp) in Amps	8.24
Maximum System Voltage	1000V
Solar Cells per Module (Units)	36
Length x Width x Thickness (LxWxT) mm	1495 x 670 x 30
Weight - Kg	12.0
Mounting Holes Pitch (Y) - mm	980
Mounting Holes Pitch (X) - mm	645
Area - Sq. M	1.02
Junction Box	3 RAIL

I-V Curve at STC FAL 165

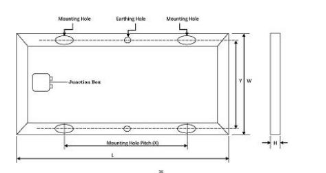

Diagram FAL 165

05 years Product Warranty, 12 years – 90% of Power, 25 Years – 80% of power

Due to constant product modifications, FAL reserves the right to amend the above specifications without prior notice.
