Wide Range of Solar Panels

FAL 100

FAL 100 Solar Panel

Power (Pm) in Watts (Nominal)	100Wp
Open Circuit Voltage (Voc) in Volts	22.82
Short Circuit Current (Isc) in Amps	5.61
Voltage at Maximum Power (Vmp) in Volts	19.40
Current at Maximum Power (Imp) in Amps	5.16
Maximum System Voltage	1000V
Solar Cells per Module (Units)	36
Length x Width x Thickness (LxWxT) mm	1000 x 665 x 30
Weight - Kg	7KG
Mounting Holes Pitch (Y) - mm	630MM
Mounting Holes Pitch (X) - mm	500MM
Area - Sq. M	0.671
Junction Box	3 RAIL 10Amp

I-V Curve at STC FAL 100

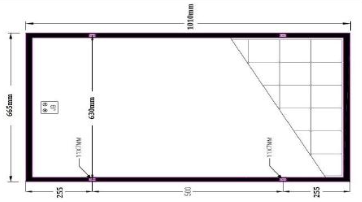

Diagram FAL 100

05 years Product Warranty, 12 years – 90% of Power, 25 Years – 80% of power

Due to constant product modifications, FAL reserves the right to amend the above specifications without prior notice.
